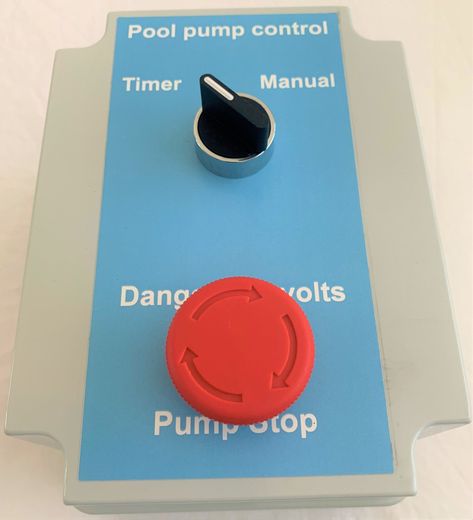

Panel Ref: SPC101 Pump Controller
The SPC101 panel is a replacement for the
standard pump Start/Stop contactor found
in most swimming
pool plant rooms.
This panel offers a direct-on-line contactor
with adjustable overload protection,
Also comes with a terminal to connect your
existing timer output.
230-240v AC. 5.5 KW. 12 Amp

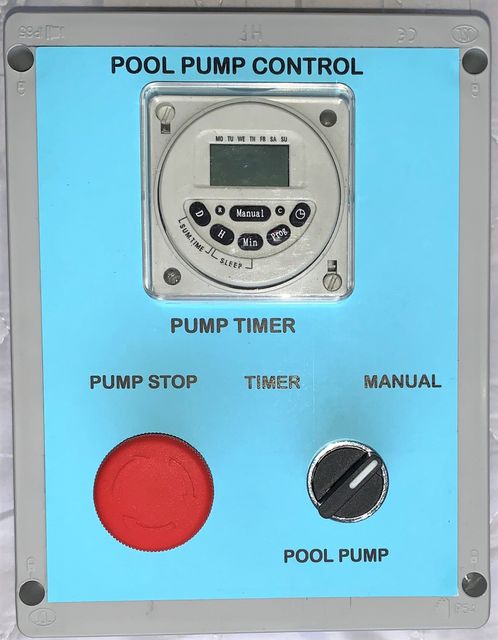

Panel Ref: SPC102 Timed Pump Controller
The SPC102 panel offers all the benefits of the SPC101 plus
a digital timeclock to control your pool pump.
The digital timer feature 16 on/off time settings to give full
control over your pump/filtration system
230-240v AC. 5.5KW 12 Amp

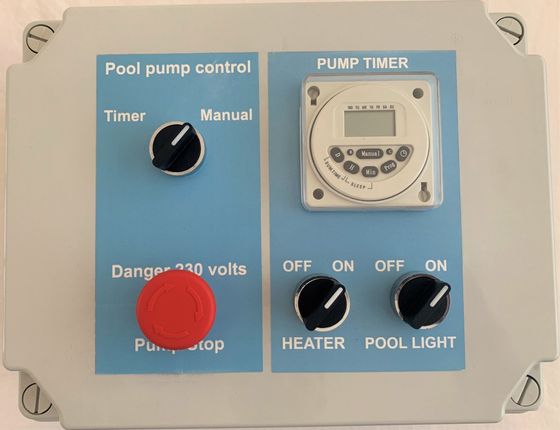

Panel Ref: SPC103 Multi Control Panel
The SPC103 Panel is a complete swimming pool control panel in one box, Excluding circuit
protection , this can be found on the SPC104.
The SPC 103 has the addition control of a pool light & heating options, Digital timer included
230-240v AC

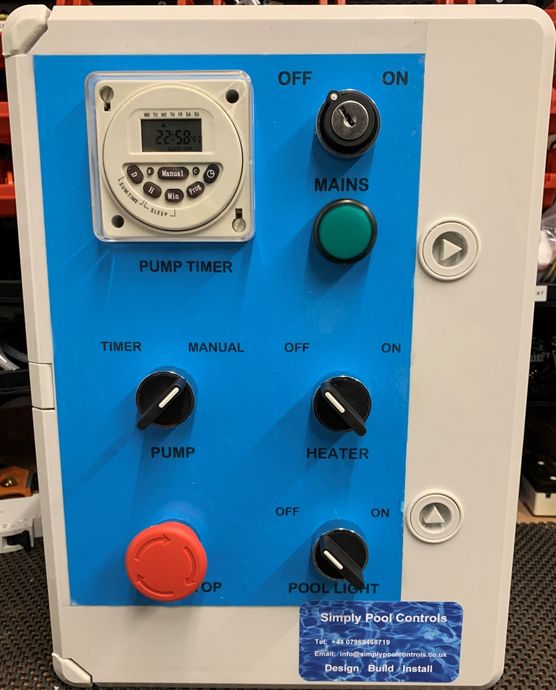

Panel Ref: SPC104 Complete System with circuit protection
The SPC104 is a complete swimming pool control panel in one box, including all circuit protection by mcb's.
This panel has all the features of the SPC103 but with key switch control, Hinged lid box enclosure.
Frost Protection included 230/240v AC

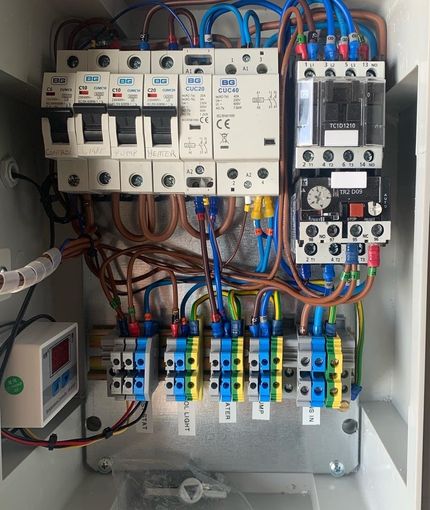

Inside the SPC104
Showing full protection of Pump,
Outgoing equipment with digital frost protection
